Front Face Mirrors

Curves & Generall Parameters

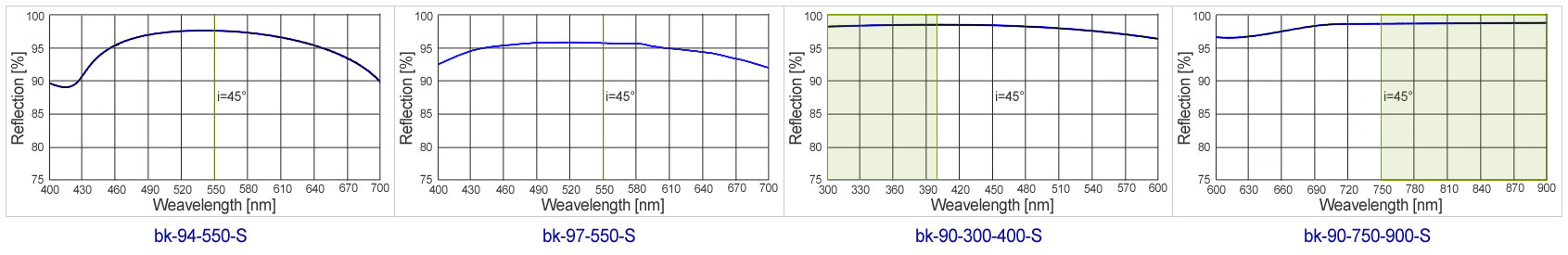

  • Curves
  • Generall Parameters
Substrat: Float Glas
Dicke: 0,5 - 6mm
Abriebfestigkeit: MIL-M-13508 C
Haftfestigkeit: MIL-C-675 C
Temperaturbeständigkeit der Beschichtung: bis 250° C

Stock program

ATTENTION! Other sizes and substrates (eg. plastics,...) are, due to our flexible stock program available at short notice mostly without an price increase.

Reflection [%] Order No. ø25,4mm(B) CA > 22mm Order No. 50x50mm(C) or ø50mm(D)
≥94% @ 550nm bk-94-550-S-B bk-94-550-S-C / D
≥97% @ 550nm bk-97-550-S-B bk-97-550-S-C / D
≥90% @ 300 - 400nm bk-90-300-400-S-B bk-90-300-400-S-C / D
≥94% @ 750 - 900nm bk-90-750-900-S-B bk-90-750-900-S-C / D
